Features

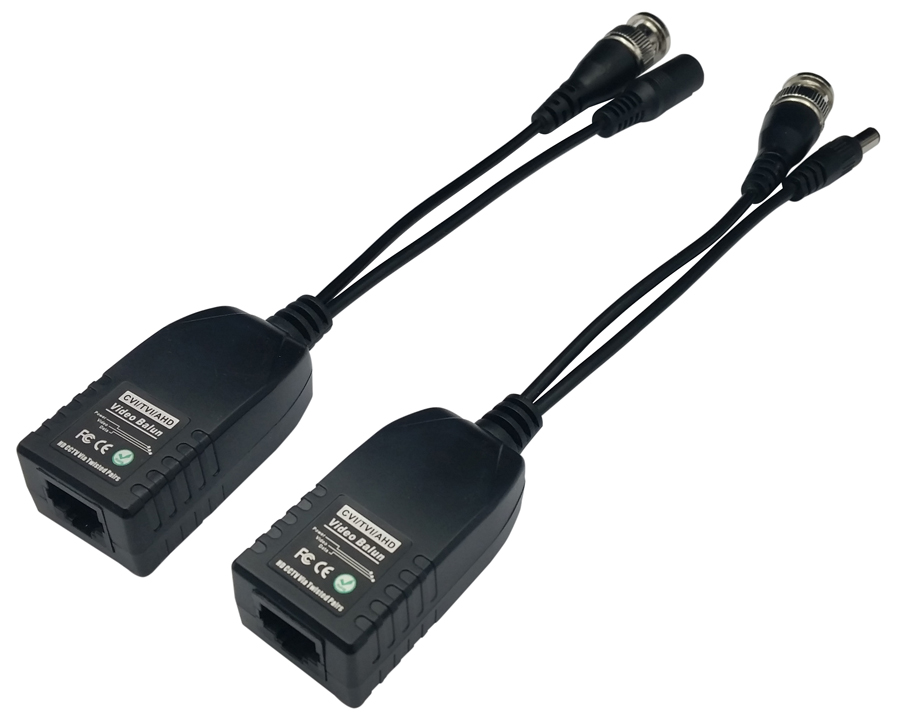

Power-Video signals are routed via UTP and RJ45.The unit is a passive(non-amplified)device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair(UTP) telephone wire

Compatible with all HD-CVI,TVI,HD-AHD

Video up to 450m for 720P CVI Cameras

Video up to 250m for 720P/1080P TVI Cameras

Video up to 320m for 720P AHD Cameras

Video up to 280m for 1080P AHD Cameras

60dB crosstalk and noise immunity

Compact size and easy installation

Built-in transient suppression protection

Save cable cost 30%-50%

Technical Specifications

Frequency response:DC-60MHZ

Attenuation:0.5dB typ

CMRR(Common Mode Rejection Ratio):60DB

Surge Protection:4KV

          ESD:8KV

Impedance:BNC:75Ω；RJ45:100Ω

Working temperature: -10℃ to +70℃

Storage temperature: -30℃ to +70℃

Humidity: 0 to 95%

Dimension:52mm*28mm*21mm with 14cm cable

Material:ABS Plastic

Power-Distance Chart

Using VPD Products,Cameras can be powered at extended distances,please refer to the chart below for more information.
