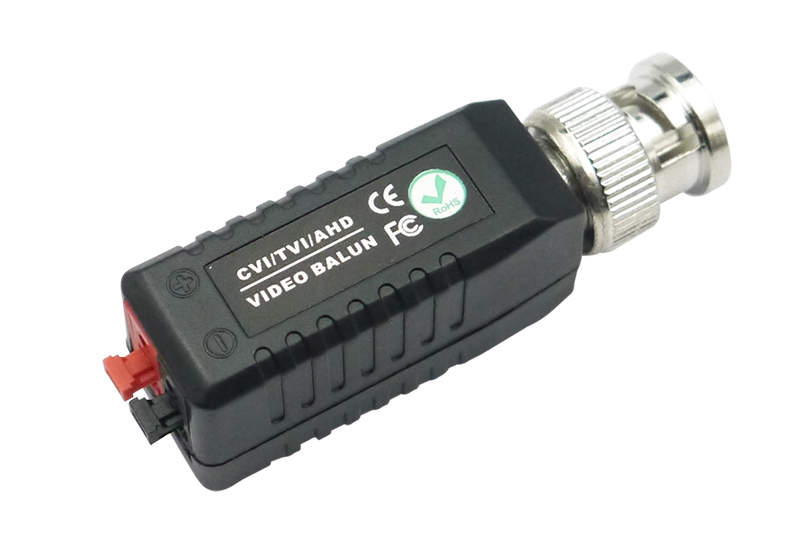

You are here: Home > Products > HD-CVI TVI AHD Balun > 1CH HD CVI TVI AHD Balun

Features:

HD CVI TVI AHD 2MP 3MP 4MP 5MP 1080P Video Transceiver for Dahua,Hikvision, XiongMaiTech

Konwerter UTP na skrętkę do kamer ANALOG AHD / CVI / TVI
Compatible with AHD,Hikvision HD-TVI, HD-CVI signal.
Push-in Terminal Block for UTP Cable.

HD-CVI 720P: Max.:450M/ HD-CVI 1080P:max.:250M;4MP/5MP:200M

HD-TVI 720P/1080P:Max 250M;4MP/5MP:200M

AHD 720P:Max 320M; AHD 1080P:Max 280M;4MP/5MP:200M

Built-in Surge&Transient Protection.
Super interference rejection.

Vitech HD Balun have been widely applied in solving the ghosting or interference problem for CCTV HD Video

Terminal Block:

Top quality,without Press-Fit Problem

BNC Connector:

All Passed the Shaking Test 100% Without Video Loss

Lightning/Surge Protection:

renewable solid state surge protection

Video Input:2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output: 2KV(different mode), 10/700us, IEC6100-4-5/1955(GB/T 1726, 5-1999)

ESD / Electrostatic Discharge Protection

Contact discharge: 6KV

Air discharge: 8KV

Standard: IEC61000-4-2

Interference /Wave Rejection and Noise Filter

Built-in Filter: 0~6MHz with Super
Interference Rejection < 60 db
