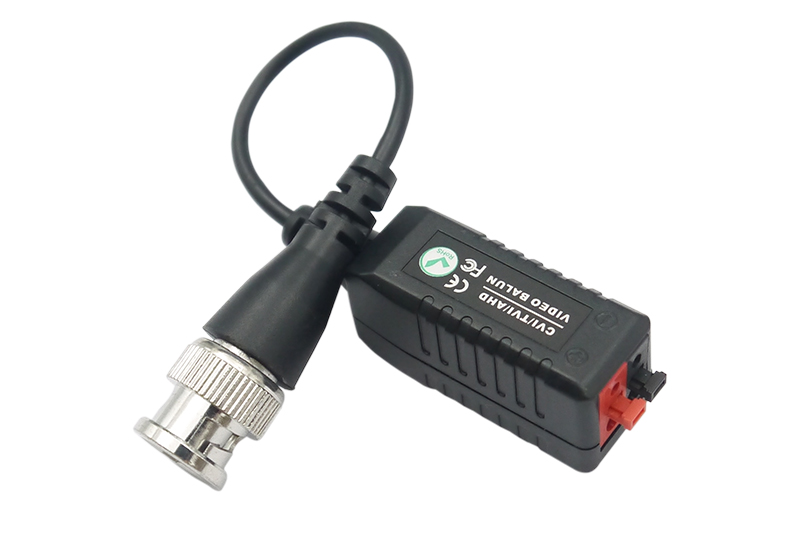

2MP 3MP 4MP 5MP 1080P HD-CVI TVI AHD Balun

Conversor Balun Par Trançado Para Video 2MP 3MP 4MP 5MP 1080P AHD/CVI/TVI
Compatible with DaHua HD-CVI signal.HD-TVI Signal,AHD Signal
Push-in Terminal Block for UTP Cable.

HD-CVI 720P: Max.:450M/ HD-CVI 1080P:max.:250M;4MP/5MP:200M

HD-TVI 720P/1080P:Max 250M;4MP/5MP:200M

AHD 720P:Max 320M; AHD 1080P:Max 280M;4MP/5MP:200M

BNC Connector:

All Our Baluns Passed the Shaking Test 100% Without Video Loss

Surge / Lightning Protection:

renewable solid state surge protection

Video Input:2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output: 2KV(different mode), 10/700us, IEC6100-4-5/1955(GB/T 1726, 5-1999)

ESD: Electrostatic Discharge Protection

Contact discharge: 6KV

Air discharge: 8KV

Standard: IEC61000-4-2

Wave / Interference Rejection and Noise Filter

Built-in Filter: 0~6MHz with Super
Interference Rejection < 60 db
