OEM Model |

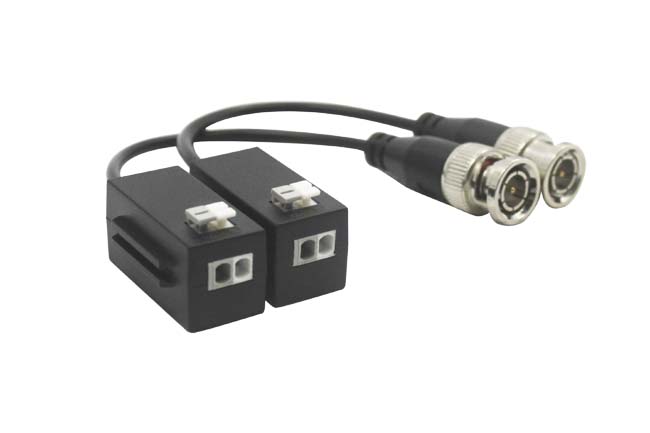

PFM800-4MP |
|
Properties |
|
|
Transmission Signal |
1 channel |
|
Transmission Distance |
HDCVI HDTVI
720P/1080P: max.250m(820.21ft) AHD 720P: max.350m(1148.29ft) 4MP: max.200m(656.17ft) |
|
Category Type |
UTP CAT 5E/6 |
|
Video Transmission Properties And Port |
|
|
Coaxial Video Connector |
BNC-M |
|
Twisted-pair Video Connector |
Push-terminal |
|
Compatible Format |
HDCVI/AHD/TVI/CVBS |
|
Resolution |
720P/1080P/4MP/5MP |
|
Anti-interference |
＞60db |
|
Protection |
|
|
ESD |
1a contact discharge electricity level 3 |
|
1b air discharge electricity level 3 |
|
|
Per: IEC61000-4-2 |
|
|
Coaxial Cable Connector |
2KV(common-code) Per: IEC1000-4-5 |
|
UTP Cable Connector |
2KV(different-code), 4KV(common-code), Per: IEC1000-4-5 |
|
Impedance |
|
|
BNC Male |
75 ohms |
|
UTP Cable |
100 ohms |
|
Physical Properties |
|
|
Dimension(L*W*H) |
173mm*21mm*20mm(6.81”x0.83”x0.79”) |
|
Shell |
ABS |
|
Color |
Black |
|
N.W. |
25g(0.06lb) |
|
Stability |
|
|
MTBF |
＞10000h |
|
Environmental |
|
|
Operating Temperature |
-10℃~+55℃(14℉~131℉) |
|
Storage Temperature |
-20℃~+70℃(-4℉~158℉) |
|
Humidity |
0~95%(non-condensing) |
