Cat5 Baluns for CCTV Video Transmission
Tech Info:

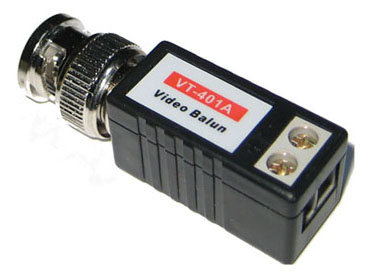

Model NO. |
VT-401A |
||||||
Specs |
1ch Passive Cat5 Baluns |
||||||
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
Audio/data |
NO |
||||||
Power |
NO |
||||||
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
Control |
NO |
||||||
UTP Port |
Terminal Block |
||||||
Dimensions(mm) |
32*21*15 |
||||||
Weigth(g) |
18 |
||||||
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
