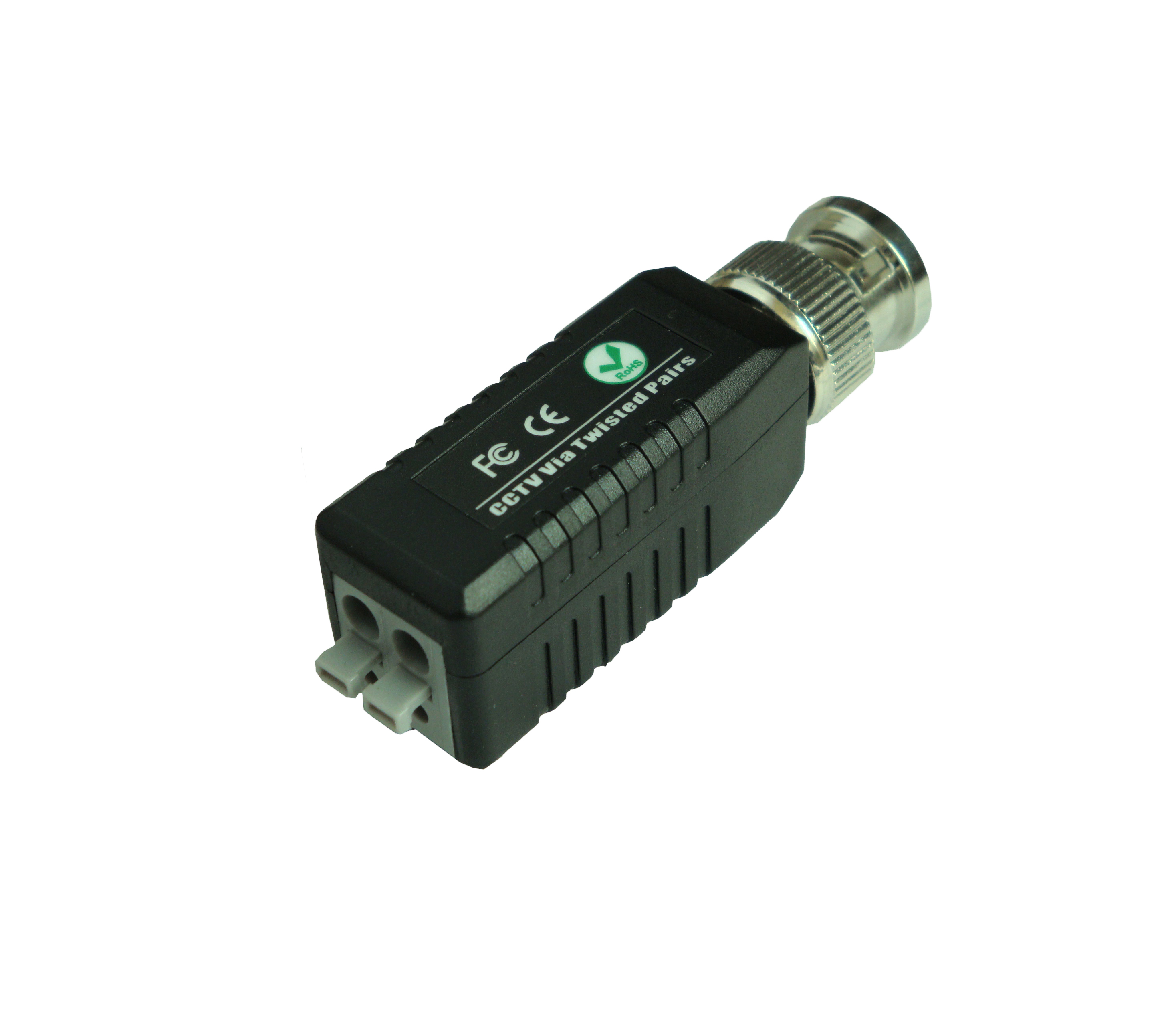

VT-401G is a BNC balun pair is a CCTV wiring solution that allows CAT-5 cable to transmit CCTV video at a distance up to 300 METERS from a CCTV camera to a recorder or other video input device
Transmisja po skrętce
Transmisji Sygnału Video
1-kanałowy nadajnik (odbiornik ) sygnału wizyjnego po skrętce
Tool-less Video Baluns with Push Pin Terminal.
Transmit video over point-to-point Unshielded Twisted Pair (UTP) wire.
Tech Info:
|
Model NO. |
VT-401G |
||||||
|
Specs |
Transmisja po skrętce Pasywny nadajnik/odbiornik sygnału |
||||||
|
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
|
Audio/data |
NO |
||||||
|
Power |
NO |
||||||
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
|
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
|
Control |
NO |
||||||
|
UTP Port |
Terminal Block with "Press-Fit" |
||||||
|
Dimensions(mm) |
39*16*19 |
||||||
|
Weigth(g) |
18 |
||||||
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
||||||
