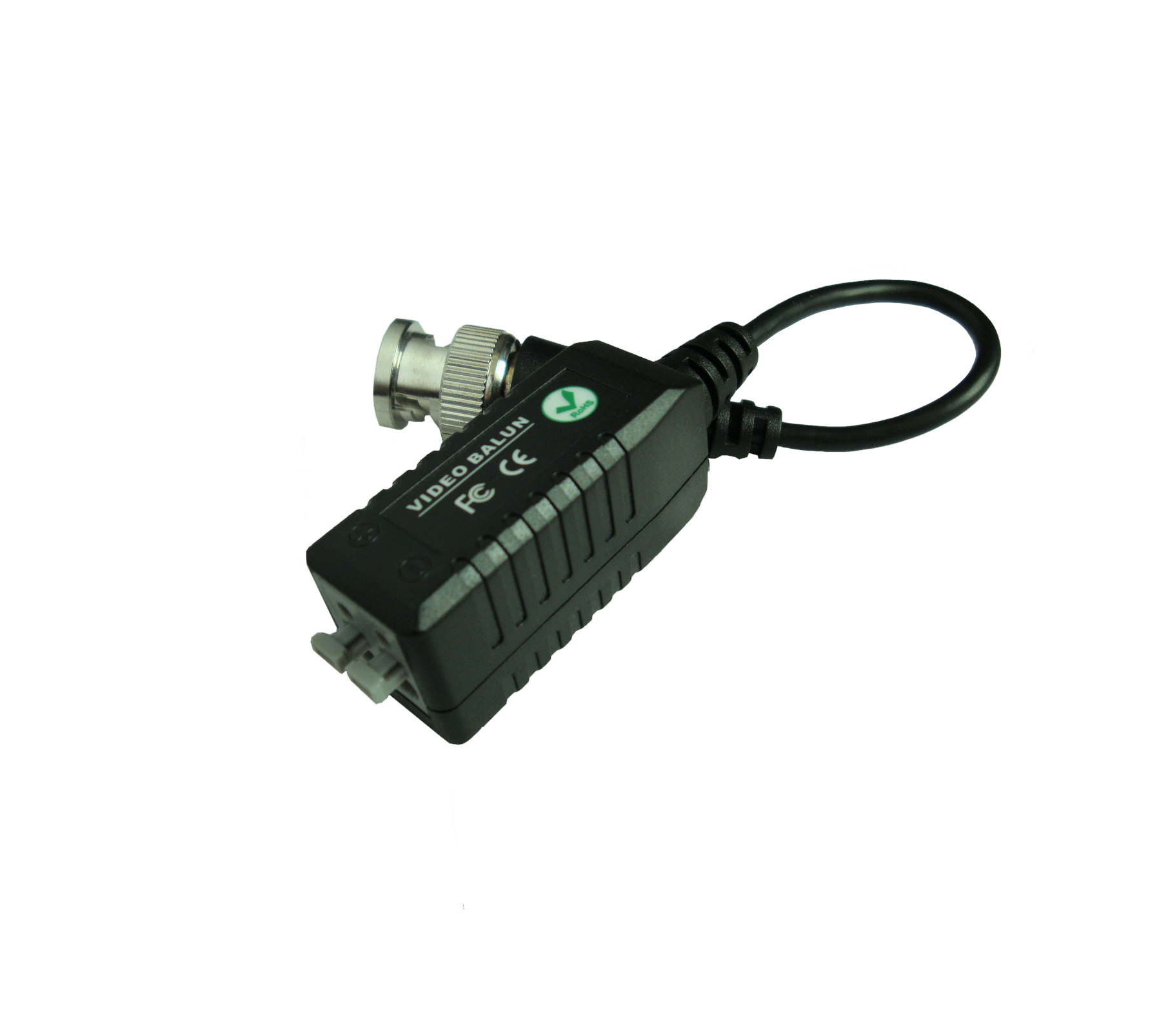

Video Balun VT-402A is a BNC balun pair is a CCTV wiring solution that allows CAT-5 cable to transmit CCTV video at a distance up to 300 METERS from a CCTV camera to a recorder or other video input device
Pasívny UTP video prevodník BNC
Video Balun Made in China
Tool-less Video Balun via Twisted Pair Transmission
Push Pin Terminal
Transmit video over point-to-point Unshielded Twisted Pair (UTP) wire.
Passive design provides immunity from noise and interference and does not require power supplies.
Tech Info:
|
Model NO. |
VT-402A |
||||||
|
Specs |
1ch Pasívny UTP video prevodník BNC |
||||||
|
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
|
Audio/data |
NO |
||||||
|
Power |
NO |
||||||
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
|
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
|
Control |
NO |
||||||
|
UTP Port |
Terminal Block with "Press-Fit" |
||||||
|
Dimensions(mm) |
39*16*19 |
||||||
|
Weigth(g) |
18 |
||||||
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
||||||
Browse for more products in the same category as this item:
Low Quality Balun from other Fake Suppliers in China
