You are here: Home > Products > Passive Video Balun > 1CH Passive Video Balun

VT-402

Transmisja po skrętce

Transmisji Sygnału VIDEO

Pasywny nadajnik odbiornik

Transmisja sygnału video po skrętce

1-kanałowy nadajnik (odbiornik ) sygnału wizyjnego po skrętce

CCTV Baluns via Twisted Pair Transmission

Tech Info:

Model NO.		VT-402
Specs		1-kanałowy nadajnik (odbiornik ) sygnału wizyjnego po skrętce
Video		Transmisja po skrętce Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB type
Audio/data		NO
Power		NO
Impedance		Coax,male BNC:75ΩUTP(Screwless)Terminal Block or  UTP RJ45 Data Connector:100Ω
Wire type		One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression		6000V 1.2μ S*5μ S
Control		NO
UTP Port		Terminal Block
Dimensions(mm)		32*21*15
Weigth(g)		18
Environment		Temperature:-10~+50℃ Humidity:0~95%

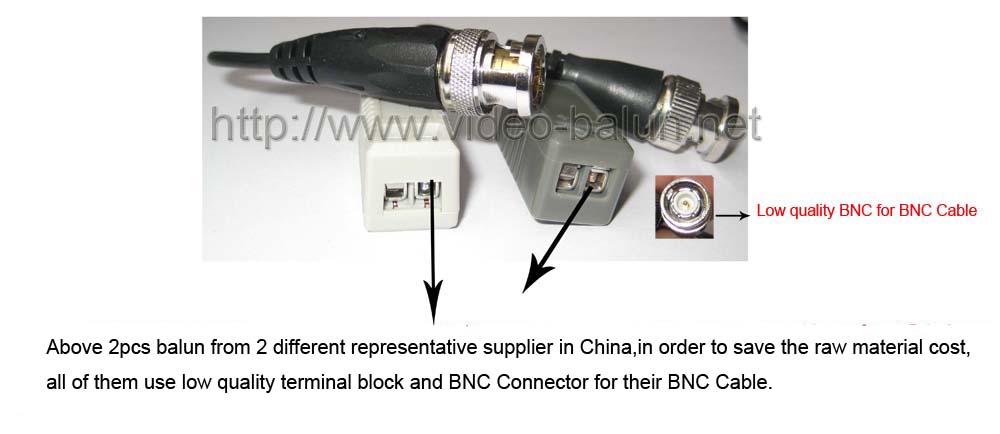

low quality Balun from other 2 different representative Supplier:
