You are here: Home > Products > Passive Video Balun > 1CH Passive Video Balun

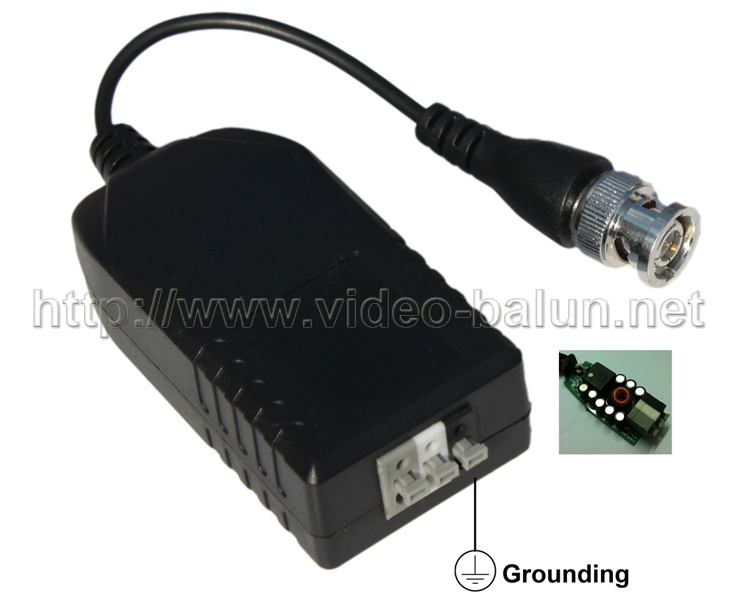

VT-430K

All-in-One

1.       Passive Video Balun

2.       Ground Loop Isolator Filter (Separator galwaniczny na skrętkę UTP)

3.       Surge Protector*

 *For isolating noise and interference purpose

• Real-time transmission of high quality color video signals upto 300M.

• Tool-less Video Baluns with Push Pin Terminal

• High Performance isolator filter effectively prevents ground loop video signal distortion
• Low video loss, Bandwidth: 0~3dB / 0~10MHz

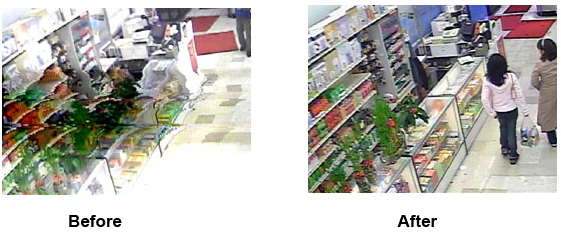

• Effectively eliminate screen tearing, cross talk and rolling, etc.
• Built-in Filter: 0~6MHz with Extra Interference Rejection
• Built-in Transient Voltage Suppressors (TVS) for surge protection
• Passive Video Balun Surge Protection
• Ground Loop Isolator Surge Protection
• Electrostatic Discharge Protection
• Passive, no power required
