You are here: Home > Products > Passive Video Balun > 1CH Passive Video Balun
CCTV balun pair allows UTP wire to be run up to 300 METERS to transmit the video signal from a CCTV camera. This allows you to use less expensive unshielded twisted pair (UTP) wire instead of coax cable for closed circuit surveillance systems.
passzív Koax-UTP csavart érpáras videojel átalakító
Right Angle
Tech Info:
|

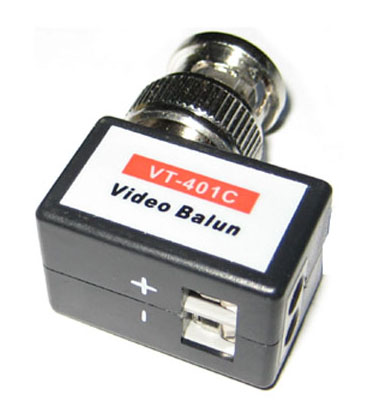

Model NO. |
VT-401C |
||||||
|
Specs |
|||||||
|
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
|
Audio/data |
NO |
||||||
|
Power |
NO |
||||||
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
|
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
|
Control |
NO |
||||||
|
UTP Port |
Terminal Block |
||||||
|
Dimensions(mm) |
32*21*15 |
||||||
|
Weigth(g) |
18 |
||||||
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
||||||
