You are here: Home > Products > Passive Video Balun > 4CH Passive Video Balun
4 канален пасивен видео балун
Transmisión de Video por Par Trenzado

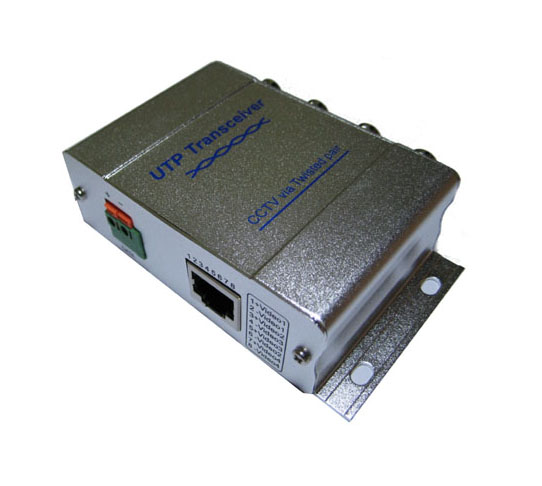

4CH Passive Video Balun (UTP Video Balun)
RJ-45 Connector to BNC Female
Tech Info:
|
Model NO. |
VT-404C |
||||||
|
Specs |
4 канален пасивен видео балун (OR 3ch Video+1ch data) |
||||||
|
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
|
Audio/data |
YES |
||||||
|
Power |
NO |
||||||
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
|
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
|
Control |
NO |
||||||
|
UTP Port |
RJ45 |
||||||
|
Dimensions(mm) |
103*70*30 |
||||||
|
Weigth(g) |
170 |
||||||
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
||||||
