You are here: Home > Products > Passive Video Balun > 4CH Passive Video Balun

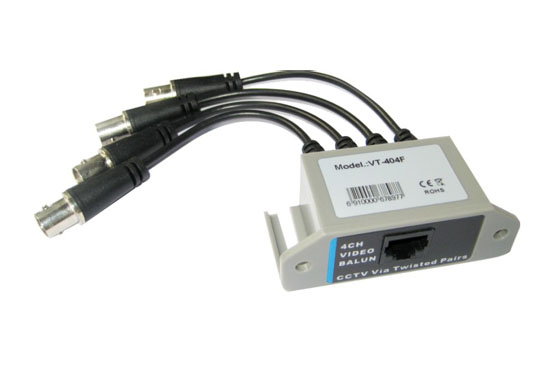

VT-404F

UTP Transceivers for CCTV

4CH Passive CCTV Video Balun (UTP Balun)

RJ-45 Connector to BNC Female

Tech Info:



Model NO.		VT-404F
Specs		4ch Passive
Video		Frequency respons: DC-8Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB type
Audio/data		NO
Power		NO
Impedance		Coax,Female BNC:75Ω or  UTP RJ45 Data Connector:100Ω
Wire type		One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression		6000V 1.2μ S*5μ S
Control		NO
UTP Port		RJ45
Dimensions(mm)		75*48*25
Weigth(g)		120
Environment		Temperature:-10~+50℃ Humidity:0~95%
