Model

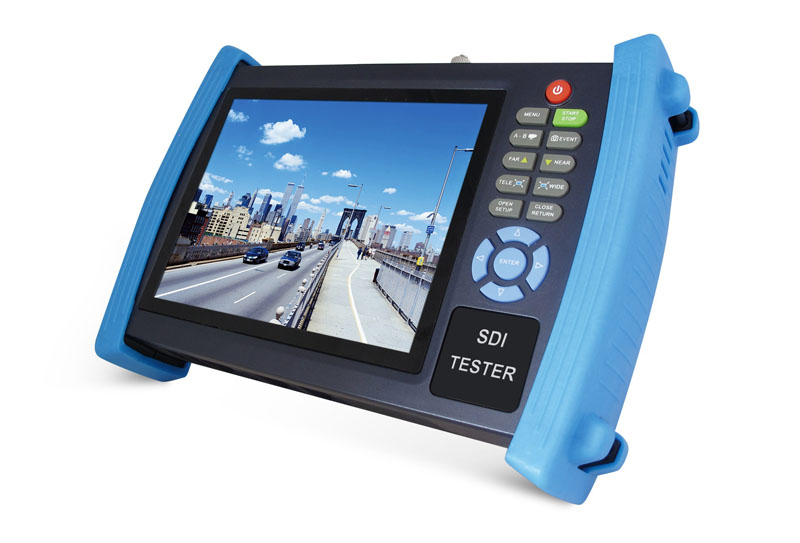

 HVT-1600

SDI digital Video Signal *

Video IN/OUT

1 channel SDI IN BNC& 1 channel Output

HDMI digital Video Signal *

digital Signal in

1 channel HDMI in，support 1080P,720P

Video Test

Signal mode

NTSC/PAL (Auto adapt)

Video Output Mode

1.0 Vp-p

Display

7inch TFT-LCD, 800(RGB)×600 resolution

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel Output

VGA input display

VGA input display

Receive DVR、NVR VGA signal

Video Level test

Level test

Video signals measured in IRE or mV

Video Level meter (optional)*

Video Level meter

PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement

DC12V2Apower output

DC12V power output

Output DC12V/2Apower for camera

5V power output

Power output

Output 5V power for phone as power bank

Audio input test

Audio input test

test the pickup and other audio equipments on the front-end

PTZ controller

Communication

Support RS232 and RS485

PTZ Protocol

Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Baud Rate

600，1200，2400，4800，9600，19200,57600,115200bps

Video Signal Generation

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

UTP Cable tester

UTP cable test

Test UTP cable connection status and display in the screen. Read the number of the test box.

RS485 /232data analysis

Data Monitor

Captures and analyzes the command data from controlling device

10x Zoom Image

 Image 10x zoom

10x zoom image display and video out

Photograph、Video record, Record playback

Photograph

snapshot and save the current image as JPG file

Video record

Video record and storage the file

Record playback

To view the storage file in the SD card

Port flicker

Port flicker

Find the connected POE port quickly.

IP scan、Link monitor、PING test

IP scan

Find out the connected IP camera or the other network equipment IP address quickly.

Link monitor

Check the IP address whether is occupied

PING testing

Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address

Cable scan *

Cable scan

Search the cable by the audio signal

PoE test

PoE test

Display the power supply voltage and cable connection states

Digital Multimeter ^*(Optional)

AC/DC Voltage

0-660V auto/manual range, the min resolution is 0.1mV

AC/DC current

660.0uA , 6.600mA, 66.00mA , 660.0mA,10.00A

Resistance

660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ

Capacitance

6.6nf～66000uF， the min resolution is 1pf

Diode

0～2V forward voltage, the min resolution is 1mV

Data hold

Hold and display the measured value

Relative measurement

Display the relative power value

Continuity testing

Built-in buzzer will sound, if resistance is lower than 30Ω

Testing speed

3 times/ seconds

Data range

-6600～+6600

Optical power meter ^**(Optional)

Calibrated Wavelength(nm)

850/1300/1310/1490/1550/1625nm

Power range(dBm)

-70～+10dBm

Sensitivity(nW)

0.001nW

Connector type

FC/PC

Data hold

Hold and display the measured value

Relative measurement

Display the relative power value

Visual fault locator ^**(Optional)

Visual fault locator

Test fiber’s bending and breakage ( SM and MM fiber)

TDR Test^**(Optional)

TDR Test

Cable length and short circuit measurement(BNC cable, telephone cable)

POWER

Power Adapter

DC 5V（2A）

Battery

Built-in 7.4V Lithium polymer battery ,6500mAh

Rechargeable

After charging 6-8 hour, working time lasts 17 hours

Low Consumption

Energy saving technology, the battery icon real-time display

Parameter

Operation setting

English/Chinese and other languages OSD menu

Auto off

5-60 (mins)

Keytone

On/Off

General

WorkingTemperature

-10℃ ～+50℃

Working Humidity

30%～ 90%

Dimension/Weight

256mm x 173mm x 50mm / 1.2kg
