You are here: Home > Products > HD-CVI TVI AHD Balun > HD-CVI Balun

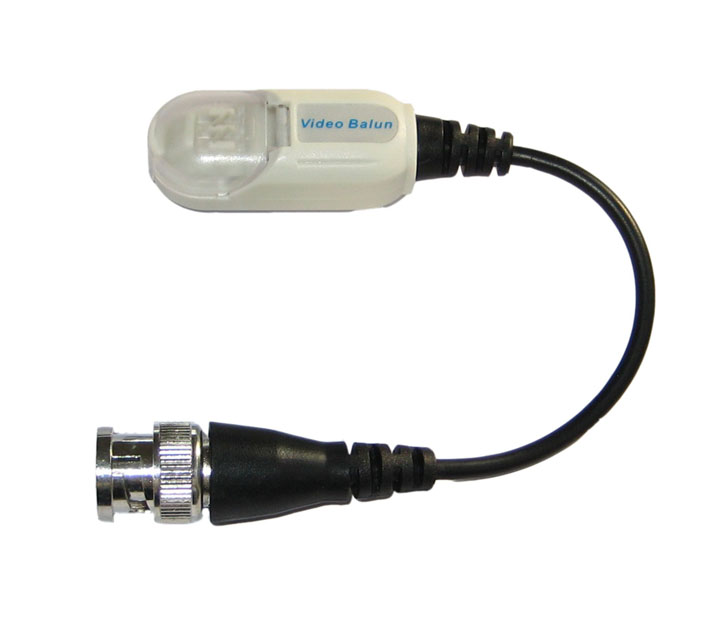

VT-HD401J-CVI

Compatible with DaHua HD-CVI,Hikvision Turbo HD-TVI,AHD 1080P video signal.
Tool-Less HD Pigtail Video Balun

CVI Transmission distance:450M for 720P; 250M for 1080P

TVI Transmission distance:1080P:max.:250M.

960P AHD Transmission distance:320M

1080P AHD Transmission distance:280M

BNC Connector:

All Our Baluns Passed the Shaking Test 100% Without Video Loss

Surge / Lightning Protection:

renewable solid state surge protection

Video Input:2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output: 2KV(different mode), 10/700us, IEC6100-4-5/1955(GB/T 1726, 5-1999)

ESD: Electrostatic Discharge Protection

Contact discharge: 6KV

Air discharge: 8KV

Standard: IEC61000-4-2

Interference  / Wave Rejection and Noise Filter

Built-in Filter: 0~6MHz with Super
Interference Rejection < 60 db
