You are here: Home > Products > HD-TVI Balun > HD-TVI Balun

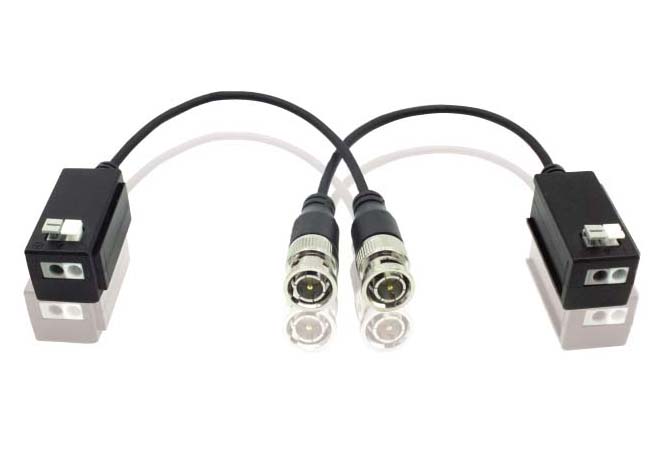

VT-HD402D-TVI

NO Power required.
Compatible with Hikvision HD-TVI,HD-CVI,AHD signal.
Push-in Terminal Block for UTP Cable.
HD TVI  1080P Transmission distance:Max.:250M

250M for 720P/1080P TVI Transmission distance

450M for 720P CVI Transmission distance

250M for 1080P CVI Transmission distance

320M for 960P AHD Transmission distance

280M for 1080P AHD Transmission distance

Built-in Surge&Transient Protection.

BNC Connector:

All Our Baluns Passed the Shaking Test 100% Without Video Loss

Surge / Lightning Protection:

renewable solid state surge protection

Video Input:2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output: 2KV(different mode), 10/700us, IEC6100-4-5/1955(GB/T 1726, 5-1999)

ESD: Electrostatic Discharge Protection

Contact discharge: 6KV

Air discharge: 8KV

Standard: IEC61000-4-2

Wave / Interference Rejection and Noise Filter

Built-in Filter: 0~6MHz with Super
Interference Rejection < 60 db

Super interference rejection.
