You are here: Home > Products > HD-SDI Camera > HD-SDI Camera

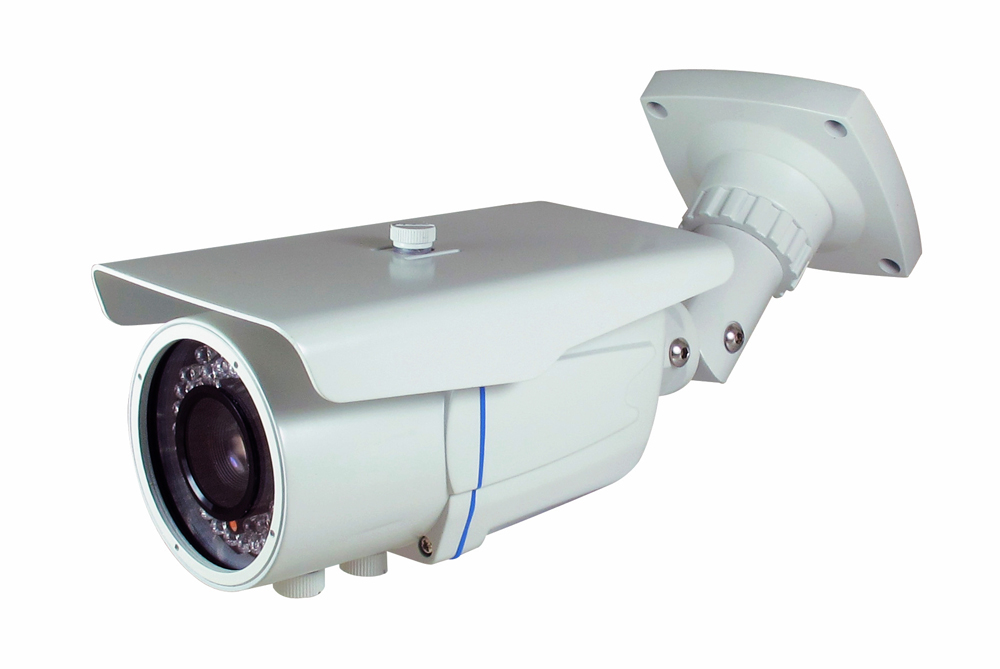

HD-SDI-7020P

HD-SDI Camera,CMOS Megapixel sensor

*Support WDR,3D-DNR
*DAY and NIGHT ICR function
*OSD menu,Motion detection
*Digital Zoom function
*SDI and VIDEO dual signal output

*IR LED: ￠5X42PCS IR range: 40M
*2.0 Mega pixel 2.8-12mm,ICR+DC lens

*Water resistance: IP66
*3-Axis cable built-in bracket



Parts	Items	Specification
		HD-SDI-7020V OV 1080P	HD-SDI-7020S Sony 1080P	HD-SDI-7020P Panasonic 1080P
Image Device	Image Device	1/3" OV 2M pixel CMOS Sensor	1/3" Sony 2M pixel CMOS	½.8" Panasonic 2.2M  pixel CMOS
	Total Pixel No.	1944(H)*1092(V)	1944(H)*1092(V)	1944(H)*1092(V)
Functions	AGC	Normal/ High/ Off
	Sens-Up	OFF, ON (x2～x128)
	BLC	OFF/ON
	WDR	OFF/ON
	3D DNR	OFF/ON
	Flickerless	50Hz/ 60Hz selectable
	D. Zoom	x1～x10
Video Output	Standard HD-SDI	SMPTE 292M compatible
	Analog CVBS	Composite video output, 75Ohm, 1Vp-p
	Output Resolution	1080P30FPS, 720P60FPS	1080P30FPS, 720P60FPS	1080P30FPS, 720P60FPS
