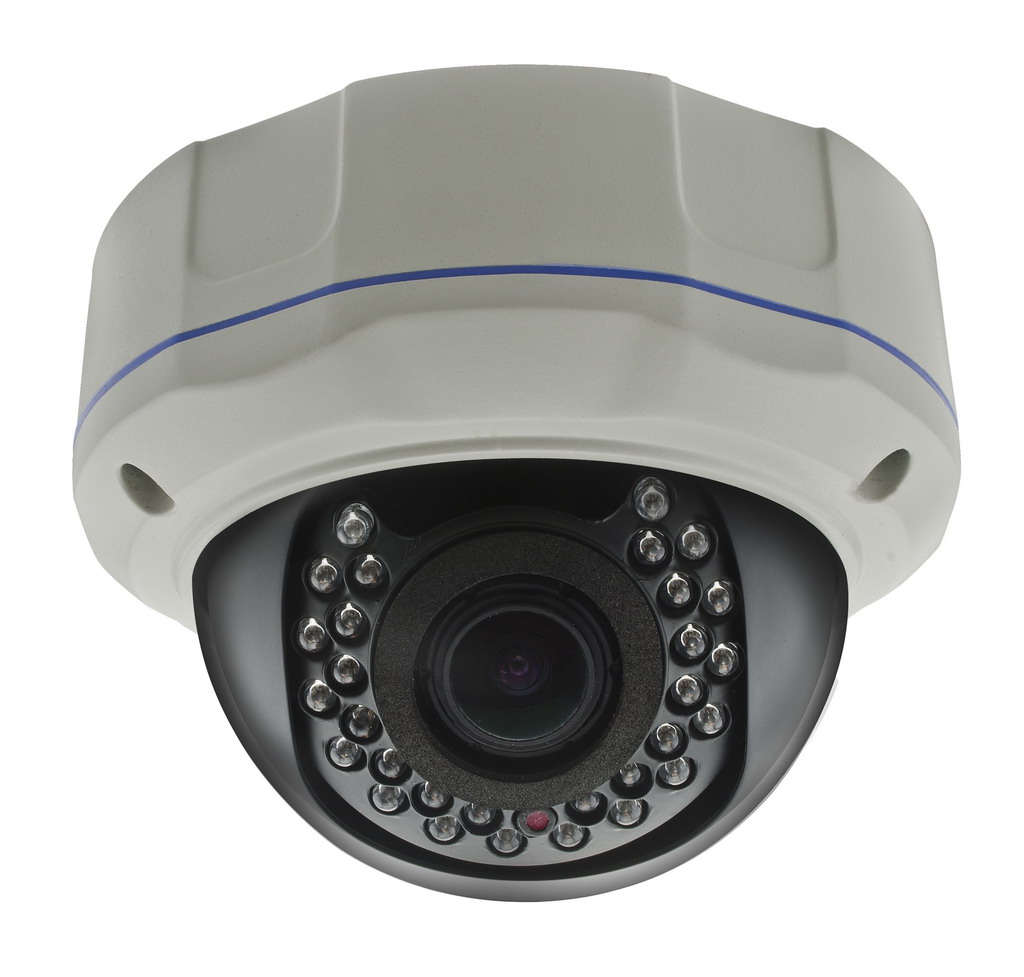

HD-SDI Camera,CMOS Megapixel sensor
*Support WDR,3D-DNR
*DAY and NIGHT ICR function
*OSD menu,Motion detection
*Digital Zoom function
*SDI and VIDEO dual signal output
*IR LED: ￠5X30PCS IR range: 25M
*2.0 Mega pixel 2.8-12mm,ICR+DC lens
*Water resistance: IP66
| Parts | Items | Specification | ||
|
HD-SDI-7038S Sony 1080P |
HD-SDI-7038P Panasonic 1080P |
|||
| Image Device | Image Device | 1/3" Sony 2M pixel CMOS | ½.8" Panasonic 2.2M pixel CMOS | |
| Total Pixel No. | 1944(H)*1092(V) | 1944(H)*1092(V) | ||
| Functions | AGC | Normal/ High/ Off | ||
| Sens-Up | OFF, ON (x2～x128) | |||
| BLC | OFF/ON | |||
| WDR | OFF/ON | |||
| 3D DNR | OFF/ON | |||
| Flickerless | 50Hz/ 60Hz selectable | |||
| D. Zoom | x1～x10 | |||
| Video Output | Standard HD-SDI | SMPTE 292M compatible | ||
| Analog CVBS | Composite video output, 75Ohm, 1Vp-p | |||
| Output Resolution | 1080P30FPS, 720P60FPS | 1080P30FPS, 720P60FPS | ||
