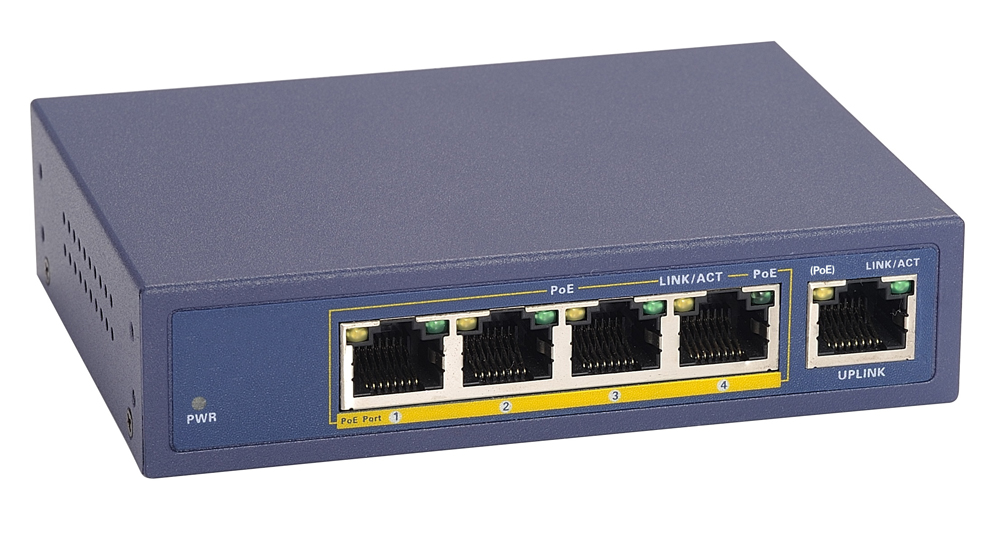

Features
|
|
|
|
|
|
|
|
4CH
PoE Switch,10/100Mbps
|
|
|
|
|
|
|
Fully
IEEE802.3af standard compliant
|
|
|
|
|
|
Support
PoE power upto 15.4W for each PoE port
|
|
|
|
|
Auto
detect powered device(PD)
|
|
|
|
|
|
|
Plug&Play.No
configuration requred
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Speciafication
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technology
|
|
|
|
|
|
|
Network Standards
|
*IEEE802.3i 10BASE-T
|
|
|
|
*IEEE802.3u
100BASE-TX
|
|
|
|
*IEEE802.3x
Flow Control
|
|
|
|
POE Power
|
*15.4W per
port(IEEE802.3af)
|
|
|
|
*Wiring:Data&Power
provided over pairs
|
|
|
1/2
and 3/6 or 4/5(+) and 7/8(-)
|
|
|
|
*Cable:UTP
cat.5 or better
|
|
|
|
Processing types
|
*Store-and-forward
|
|
|
|
|
*Half-duplex
back pressure and IEEE
|
|
|
802.3x
full-duplex flow control
|
|
|
|
Buffer memory
|
*48Kb embedded memory per
unit
|
|
|
Network latency
|
*Less than 20μs for
64-byte frames in
|
|
|
Store-and-forward
mode
|
|
|
|
Power
|
|
|
|
|
|
|
|
Input
|
*48VDC input
|
|
PoE Power
consumption
|
*15.4W
|
|
Mechanical
|
|
|
|
|
|
|
Casing
|
*Metal case
|
|
Dimension
|
*117x85x28mm(LxWxH)
|
|
Weight
|
*0.63KG
|
|
Installation
|
*Rack Mounting
|
|
Interface
|
|
|
|
|
|
|
|
LED
Indicators
|
*System:Power,PoE Max Power
|
|
*Per
port:Link.Activity.Speed
|
|
POE
active,PoE error
|
|
Environment
specification
|
|
|
|
|
|
|
Operating Temp.
|
|
*0-55℃
|
|
Storage Temp.
|
|
*-10-70℃
|
|
Operating
humidity
|
|
*90% max relative humidity,non-condensing
|
|
Storage
humidity
|
|
*90% max relative humidity,non-condensing
|
|
Regulatory
Approval
|
|
|
|
|
|
|
Safety
|
*CE/RoHS/FCC
|
|
Warranty
|
*1year
|
