You are here: Home > Products > PVD Transceiver > Power Video Data Transceiver(AC/DC)

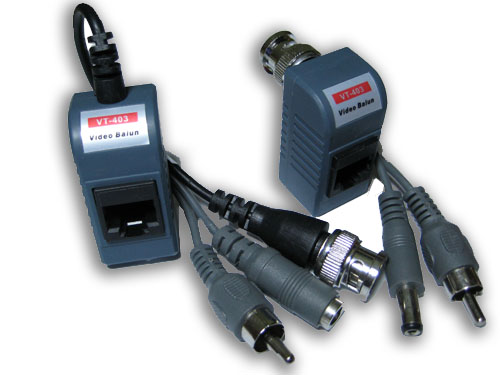

VT-403(PVD)
VT-403(PVD)

Power,Video,Audio Trasceivers manual(VT-403).rar

Features:

Cat5 Baluns with Power,Video,Audio over UTP

Tech Info:



Model NO.

VT-403

Specs

1ch Passive Power/Video/Data PVD Transceiver

Video

Frequency respons: DC-6Mhz Common-mode/Differential-mode
Rejection: 15khz –6Mhz 60dB type

Audio/data

YES

Power

NO

Impedance

Coax,male BNC:75ΩUTP(Screwless)Terminal Block or
 UTP RJ45 Data Connector:100Ω

Wire type

One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)

Surge suppression

6000V 1.2μ S*5μ S

Control

NO

UTP Port

RJ45

Dimensions(mm)

43*20*2.1

Weigth(g)

45

Environment

Temperature:-10~+50℃ Humidity:0~95%
