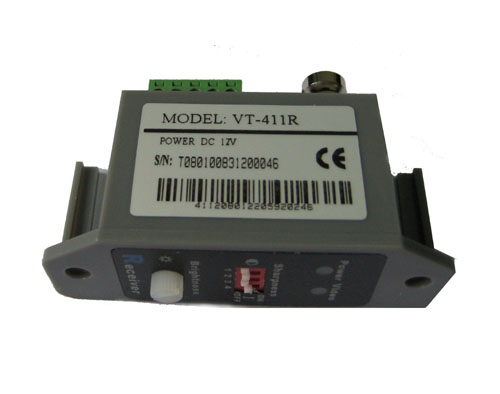

VT-411R is an active video balun reciever, also known as an active UTP balun reciever. Active (amplified) video baluns can be used to transmit video signal from security cameras using unshielded twisted pair cable such as CAT5e cable instead of coax cable, such as RG59.
Tech Info:
|
Model NO. |
VT-411R |
||||||
|
Specs |
|||||||
|
Video |
Frequency respons: DC-6Mhz Common-mode/Differential-mode |
||||||
|
Audio/data |
NO |
||||||
|
Power |
DC12V |
||||||
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or |
||||||
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
||||||
|
Surge suppression |
6000V 1.2μ S*5μ S |
||||||
|
Control |
Brightness and Sharpness |
||||||
|
UTP Port |
Terminal Block |
||||||
|
Dimensions(mm) |
75*34*25 |
||||||
|
Weigth(g) |
45 |
||||||
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% |
||||||
