product

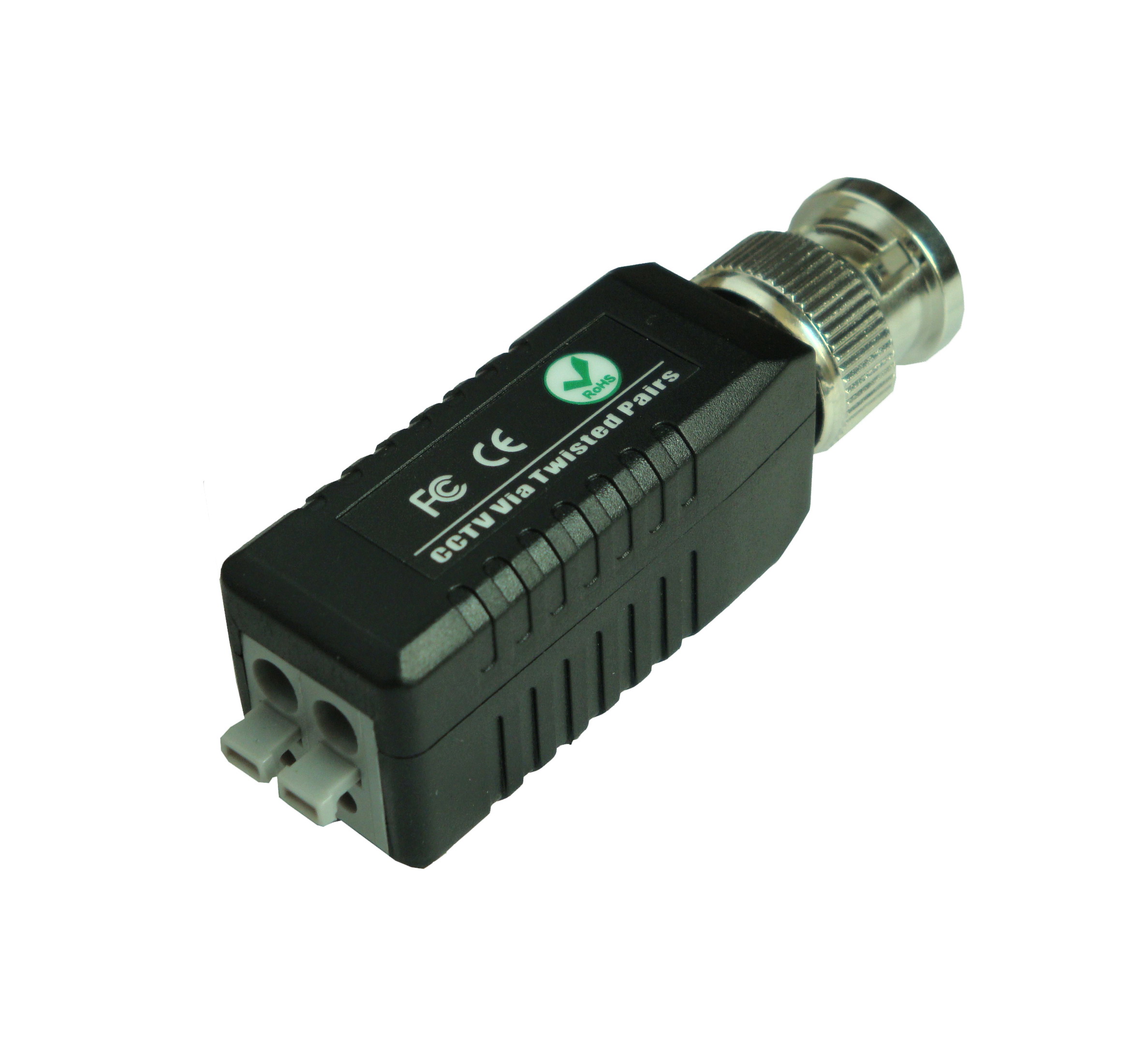

HD-AHD Balun

VT-HD401G-AHD

Features:

NO Power required.
Compatible with AHD,Hikvision HD-TVI, HD-CVI signal.
Push-in Terminal Block for UTP Cable.

320M for 960P AHD Transmission distance

280M for 1080P AHD Transmission distance

250M for 720P/1080P TVI Transmission distance

450M for 720P CVI Transmission distance

250M for 1080P CVI Transmission distance

Built-in Surge&Transient Protection.
Super interference rejection.

Vitech HD Balun have been widely applied in solving the ghosting or interference problem for CCTV HD Video

Terminal Block:

Top quality,without Press-Fit Problem

BNC Connector:

All Passed the Shaking Test 100% Without Video Loss

Lightning/Surge Protection:

renewable solid state surge protection

Video Input:2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Video Output: 2KV(different mode), 10/700us, IEC6100-4-5/1955(GB/T 1726, 5-1999)

ESD / Electrostatic Discharge Protection

Contact discharge: 6KV

Air discharge: 8KV

Standard: IEC61000-4-2

Interference /Wave Rejection and Noise Filter

Built-in Filter: 0~6MHz with Super
Interference Rejection < 60 db

Super interference rejection.
