You are here: Home > Products > Active Video Baluns > 1CH Active Video Baluns

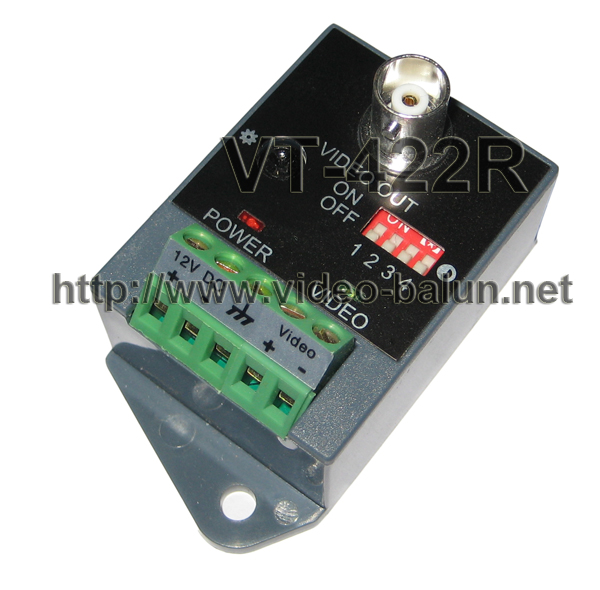

VT-422R

Active UTP Video Receiver

Tech Info:

Model NO.		VT-442R
Specs		1ch Active Receiver
Video		Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB type
Audio/data		NO
Power		DC12V
Impedance		Coax,male BNC:75ΩUTP(Screwless)Terminal Block or  UTP RJ45 Data Connector:100Ω
Wire type		One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression		6000V 1.2μ S*5μ S
Control		Brightness and Sharpness
UTP Port		Terminal Block
Dimensions(mm)
Weigth(g)		45
Environment		Temperature:-10~+50℃ Humidity:0~95%
