You are here: Home > Products > Active Video Baluns > 4CH Active Video Baluns

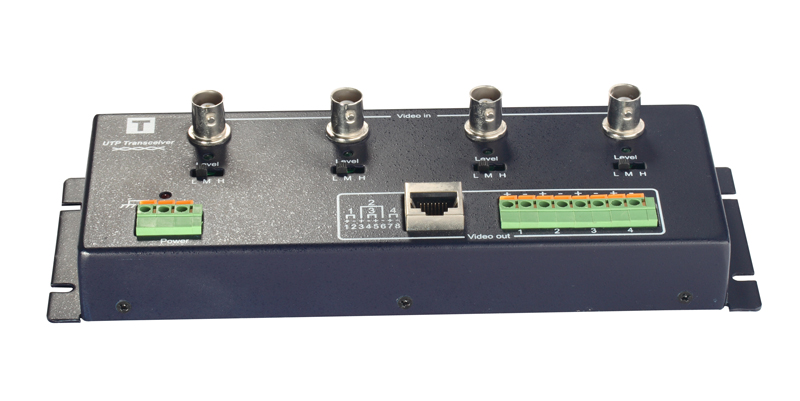

VT-441T
VT-441T

4CH Active Video Baluns (Active UTP Transmitters)



Tech Info:



Model NO.

VT-441T

Specs

4ch Active UTP Transmitter

Video

Frequency respons: DC-6Mhz Common-mode/Differential-mode
Rejection: 15khz –6Mhz 60dB type

Audio/data

NO

Power

DC12V

Impedance

Coax,male BNC:75ΩUTP(Screwless)Terminal Block or
 UTP RJ45 Data Connector:100Ω

Wire type

One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)

Surge suppression

6000V 1.2μ S*5μ S

Control

Brightness and Sharpness

UTP Port

RJ45 and Terminal Block

Dimensions(mm)

200*70*38

Weigth(g)

430

Environment

Temperature:-10~+50℃ Humidity:0~95%
