You are here: Home > Products > Active Video Baluns > 8CH Active Video Baluns

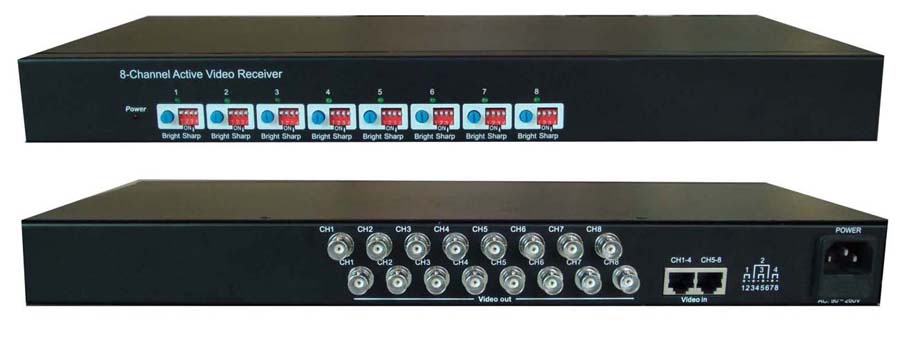

VT-408R

8CH Active Video Baluns

8CH Active UTP Receiver

8CH  Active Rack mount Video Balun(Amplified Baluns) Receiver

Tech Info:

Model NO.		VT-408R
Specs		8ch Active UTP Receiver
Video		Frequency respons: DC-8Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB type
Audio/data		NO
Power		AC90V-AC260V
Impedance		Coax,male BNC:75Ω  UTP RJ45 Data Connector:100Ω
Wire type		One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression		6000V 1.2μ S*5μ S
Control		Brightness and Sharpness
UTP Port		RJ45
Dimensions(mm)		432*185*44
Weigth(g)		2100
Environment		Temperature:-10~+50℃ Humidity:0~95%
